1.Main Technical Parameters
| No. | Parameter | Specification |
| (1) | Equipment Model | WP-50 |
| (2) | Designed Maximum Reach | 1,780 mm |
| (3) | Designed Palletizing Speed | 5-6 cycles/min (Depending on the product) |
| (4) | Maximum Compatible Pallet Size | 1,200 mm * 1,100 mm |
| (5) | Pallet Placement Configuration | Manual loading, dual-station (one left, one right) |
| (6) | Robot Payload | 45 kg (Including gripper or clamp) |
| (7) | Maximum Palletizing Height | 2,450 mm |

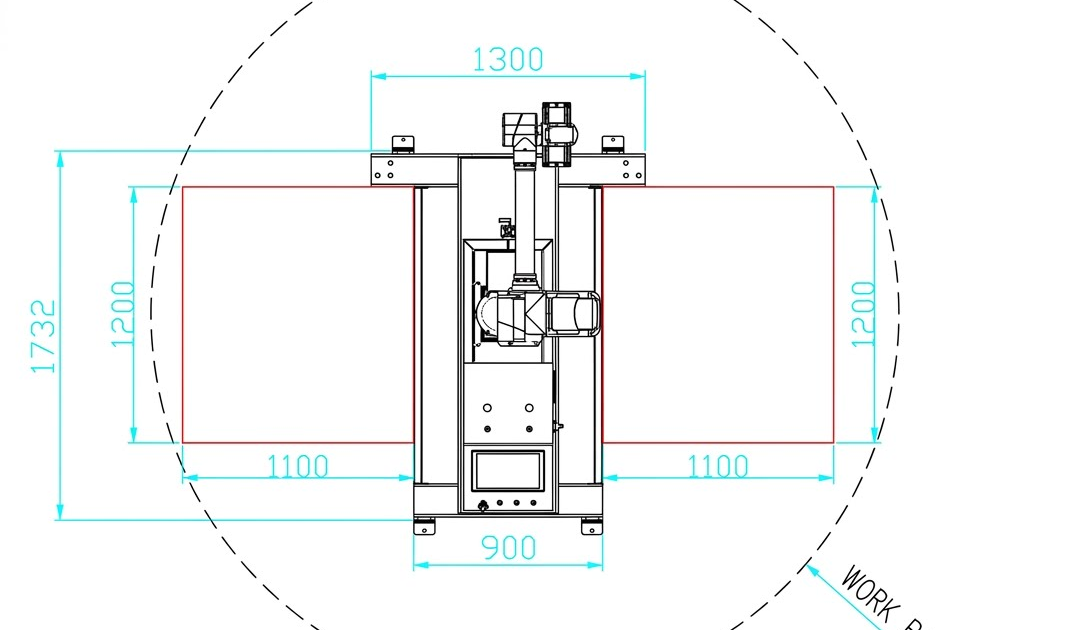

| (8) | Main Machine Dimensions | L 1,732 mm * W 1,300 mm * H 2,615 mm |
| (9) | Shipping Wooden Crate Dimensions | L 2,200 mm * W 1,500 mm * H 2,000 mm |
| (10) | Total Palletizing Power | 3.5 kW |
| (11) | Power Supply | 220V ±10%, 50Hz ±5%; Control voltage: 24V DC |
| (12) | Air Source Requirement | 0.5–0.7 MPa; Reference air consumption: 240–460 L/min |
| (13) | Equipment Weight | Approx. 500 kg |
| (14) | Noise Level | < 80 dB |
| (15) | Main Machine Color | Silver Gray,red or customized |
2. Technical Features & Performance

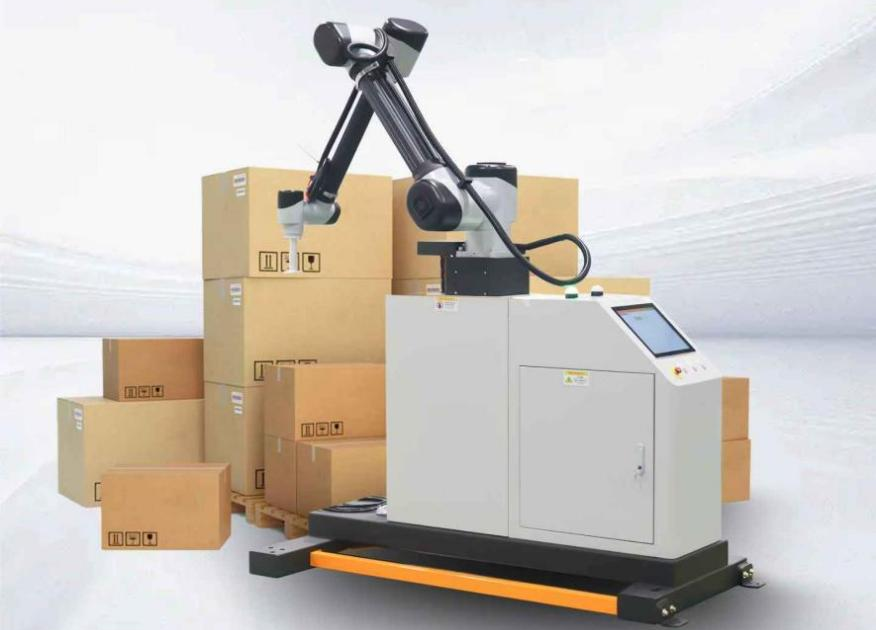

WP-50 Series Palletizing Robot – Human-Robot Collaboration, featuring:
- Customizable Robot Reach:Supports 5 major specifications to meet diverse workspace needs: WP50S (1,580 mm), WP50 (1,780 mm), WP50L (1,980 mm), WP50XL (2,180 mm), and WP50C (2,380 mm). The maximum payload capacity of this series can reach up to 50 kg.
- Plug-and-Play / Intuitive Operation:Features graphical programming with zero learning curve. Operators can fully master the software in under 5 minutes.
- Dual-Box Mixed Palletizing:Capable of palletizing two different types of cases (Box A and Box B) simultaneously. Supports up to 4 different layer patterns per single pallet and stores up to 72 unique palletizing recipes.
- Rich Smart Features Built-in:Fully equipped with standard industrial-grade integrations, including AGV interfacing, MES data collection, multi-pick & multi-place logic, interlayer slip-sheet handling, and label-outward alignment.
- Ultra-Compact Footprint:Minimizes valuable workshop space, allowing for flexible, plug-and-play layout deployment on any existing production line.

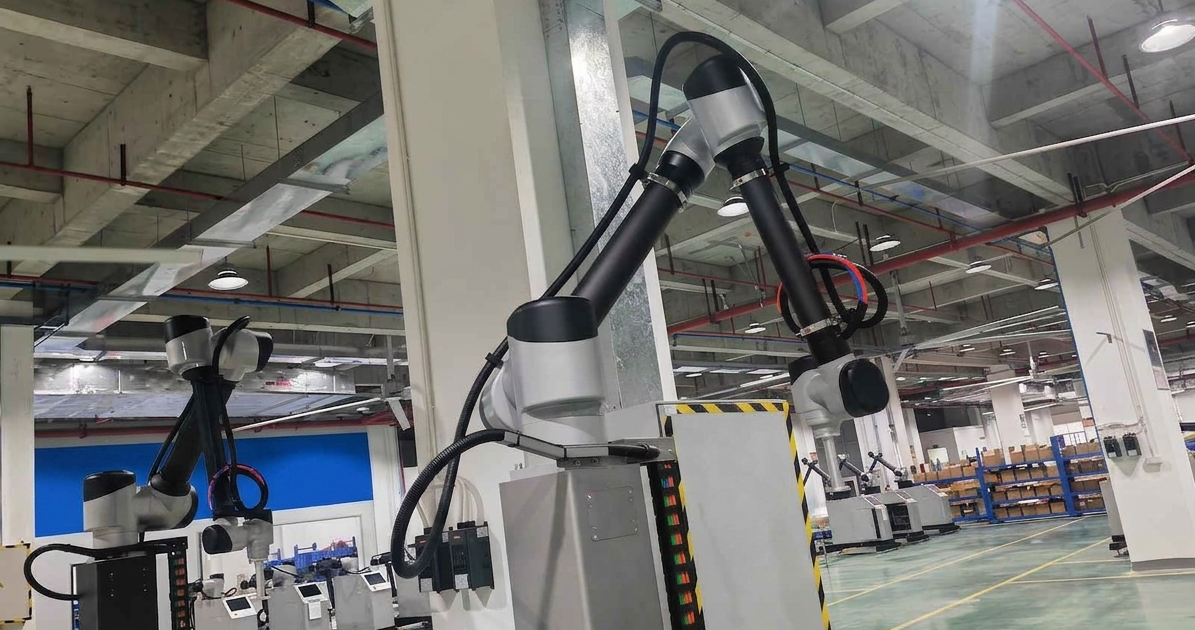

- Advanced Fence-Free Safety:Operates safely side-by-side with human workers without the need for traditional, bulky safety fencing or cages.
3.Standard Shipping List (隨機清單)
| No. (序號) | Item Name (名稱) | Specification/Model (規格型號) | Unit (單位) | Qty (數量) |
| 1 | User Manual (說明書) | Electronic Version As Standard (常規為電子版) | Copy (本) | 1 |
| 2 | Certificate of Conformity (合格證) | Standard (常規) | Pc (張) | 1 |
| 3 | Warranty Card (保修卡) | Standard (常規) | Pc (張) | 1 |
4. Main Configuration List (主要配置清單)
| No. (序號) | Component Name (名稱) | Brand/Specification (規格) | Qty (數量) | Remarks (備註) |
| 1 | Robot Controller (機器人控制器) | KEBA | 1 | Standard Controller |
| 2 | Servo Motor (伺服電機) | Inovance (匯川) | 6 | 6-Axis Motion |
| 3 | Servo Drive (伺服驅動器) | Inovance (匯川) | 6 | Multi-Axis Control |
| 4 | Solenoid Valve (電磁閥) | Inovance (匯川) | 2 | For Suction/Blow-off (吸氣/吹氣) |
| 5 | Vacuum Pressure Gauge (負壓表) | Inovance (匯川) | 1 | Suction Cup Vacuum Detection (吸盤負壓檢測) |
| 6 | Air Filter Regulator (調壓過濾器) | Inovance (匯川) | 1 | Pneumatic Control |
| 7 | Photoelectric Sensor (光電檢測開關) | SICK (西克) | 1 | Incoming Box Detection (來箱檢測) |
| 8 | Changeover Switch (轉換開關) | Changxin (長信) | 1 | Control Switch |
| 9 | Circuit Breaker (斷路器) | Chint (正泰) | 2 | Electrical Protection |
| 10 | Solid State Relay (固態繼電器) | Weidmüller (魏德米勒) | 2 | Signal Relay |
| 11 | Vacuum Suction Cup (真空吸盤) | Matsukawa (松川) | 1 | End-Effector Gripper |
| 12 | Touch Screen HMI (觸摸屏) | YANMENG (研盟) | 1 | 15-Inch Display (15寸) |
| 13 | Switching Power Supply (開關電源) | MEAN WELL (明緯) | 2 | System Power |
| 14 | Linear Guide Rail (導軌) | HSAC (人本軸承) / Standard | 4 | Linear Motion |
| 15 | Synchronous Timing Belt (同步帶) | Samsung (三星) | 5 | Transmission Belt |
| 16 | Electric Lifting Cylinder (升降電缸) | Matsukawa (松川) | 1 | 600 mm Stroke (600mm行程) |
